1 3

Komfovent

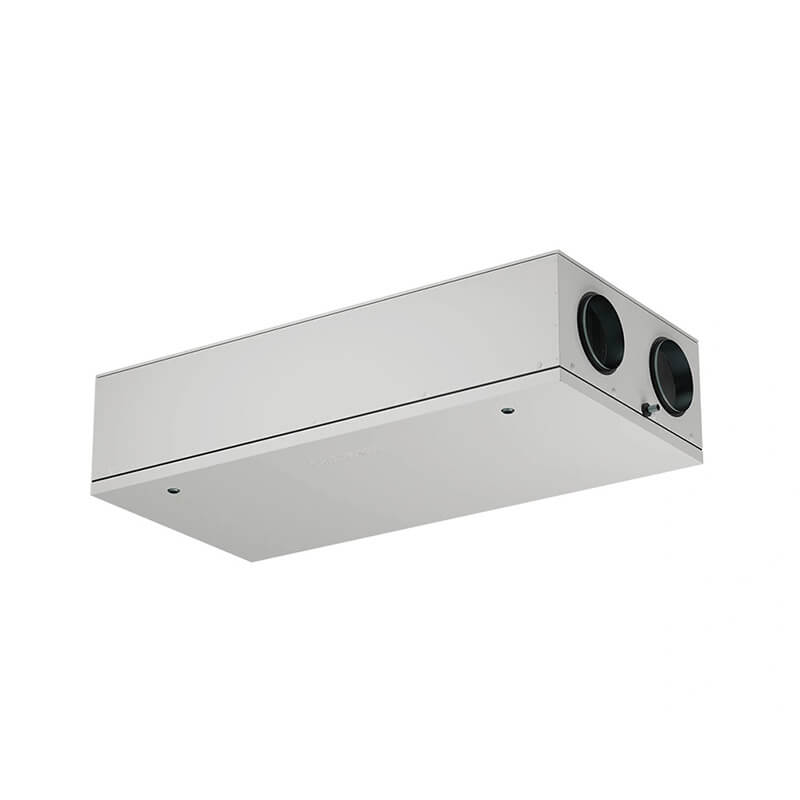

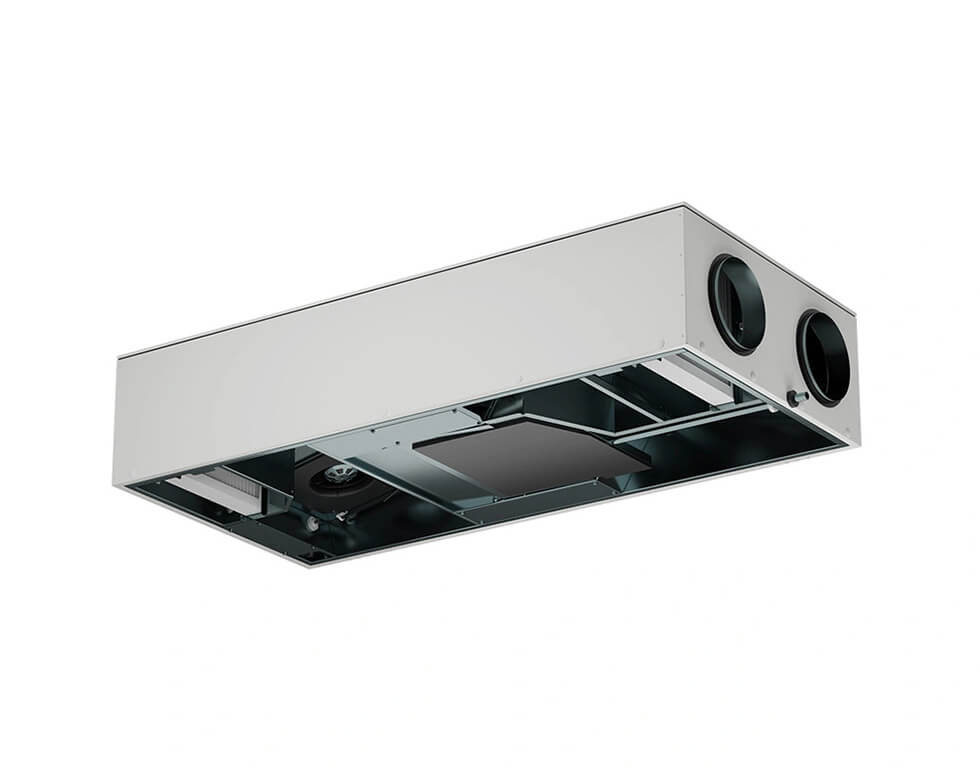

Sistema centralizzato di recupero del calore KOMFOVENT Domekt CF 250 F C6

€2.826,56 EUR
€2.826,56 EUR
Imposte incluse. Spese di spedizione calcolate al check-out.
Tipo di prodotto

Key specifications

Room size (approx.)up to 110 m²
InstallationA soffitto
Airflowup to 292 m³/h
Heat exchangerIn controcorrente (a condensazione o entalpico)
Heat recoveryup to 86 %
ControlPannello di controllo a parete, App / WiFi, Automazione dell'edificio (Modbus), Automatico (tramite sensori)
SensorsTemperatura, Umidità
Energy classA
Description

The Centralised Heat Recovery System KOMFOVENT Domekt CF 250 F C6 is the perfect solution for premises with high humidity. It features 292 m3/h of maximal air flow, and an A energy class, making it incredibly energy efficient. In addition, two integrated heaters are designed to work in even the coldest climate. It also features a Smart C6 control system, and a compact size that allows for convenient space saving. The Condensing counterflow plate heat exchanger is designed to work effectively up to -4°C, and it eliminates humidity in the cold seasons. However, the diffusion-enthalpy counterflow plate heat exchanger saves heat and cold, maintaining an optimal indoor microclimate, and reduces the risk of icing and humidity.

  • Maximal air flow 292 m3/h
  • A energy class
  • 2 integrated heaters - designed for operation in cold climate zones
  • Smart C6 control system
  • Compact size for space saving
  • Condensing counterflow plate heat exchanger works effectively up to -4°C, perfect solution for premises with high humidity, as it effectively eliminates humidity in the cold seasons
  • The diffusion-enthalpy counterflow plate heat exchanger saves heat and cold, maintains an optimal indoor microclimate, is less sensitive to icing, and regenerates humidity

Information from manufacturer`s website>

    Technical specifications
    Domekt CF 250 F C6
    Maximal air flow
    292 m3/h
    Maximal air flow
    81 l/s
    Recommended room area per system
    up to 110 m2
    Reference flow rate
    0,057 m3/s
    Reference pressure difference
    50 Pa
    SPI
    0,29 W/(m3/h)
    Thermal efficiency of heat recovery
    86 %
    Supply voltage
    1~230 V
    Electric power input of the fan drive at maximum flow rate
    91 W
    GENERAL FEATURES
    Heat exchanger types
    Condensing / Diffusion-enthalpy counterflow plate heat exchanger
    Filters
    M5 (optional F7)
    Noise level
    46 dB(A)
    DIMENSIONS
    Diameter holes
    160 mm
    Width
    604 mm
    Height
    294 mm
    Length
    1250 mm
    Weight
    52 kg
    Maintenance space
    300 mm
    A energy class
    European Quality Certificate CE.
    2-year warranty
