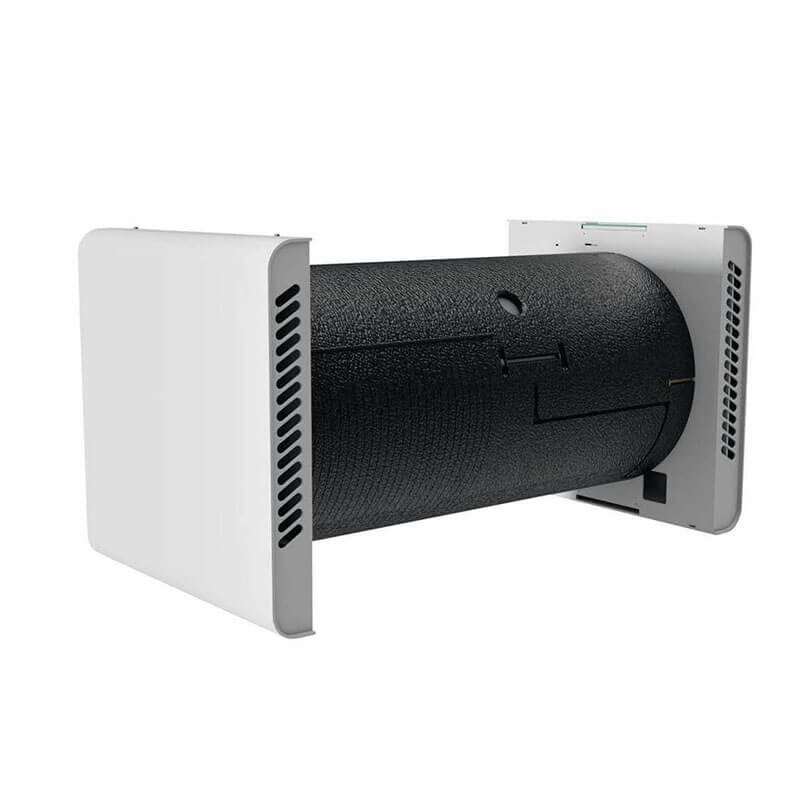

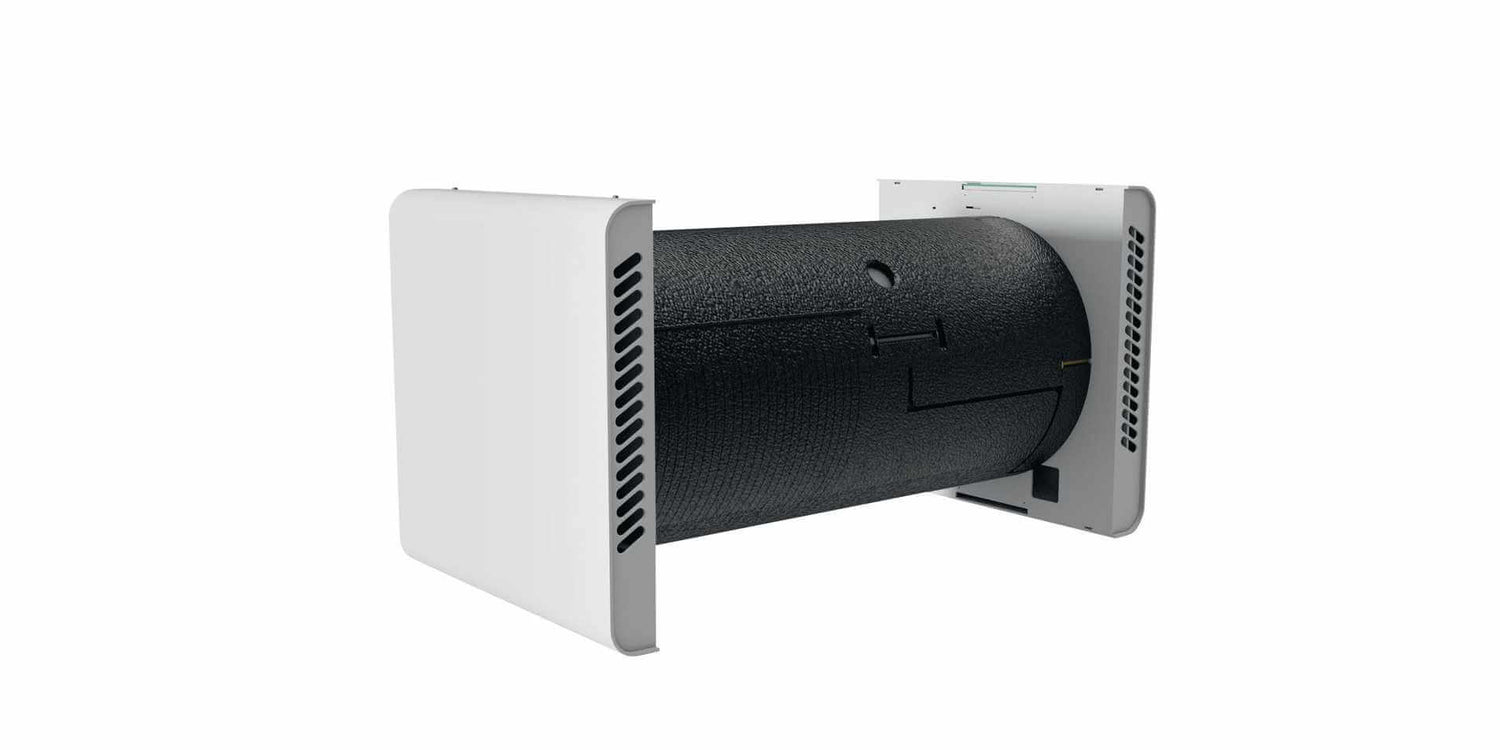

  • Recuperatore di calore Zehnder ComfoSpot 50

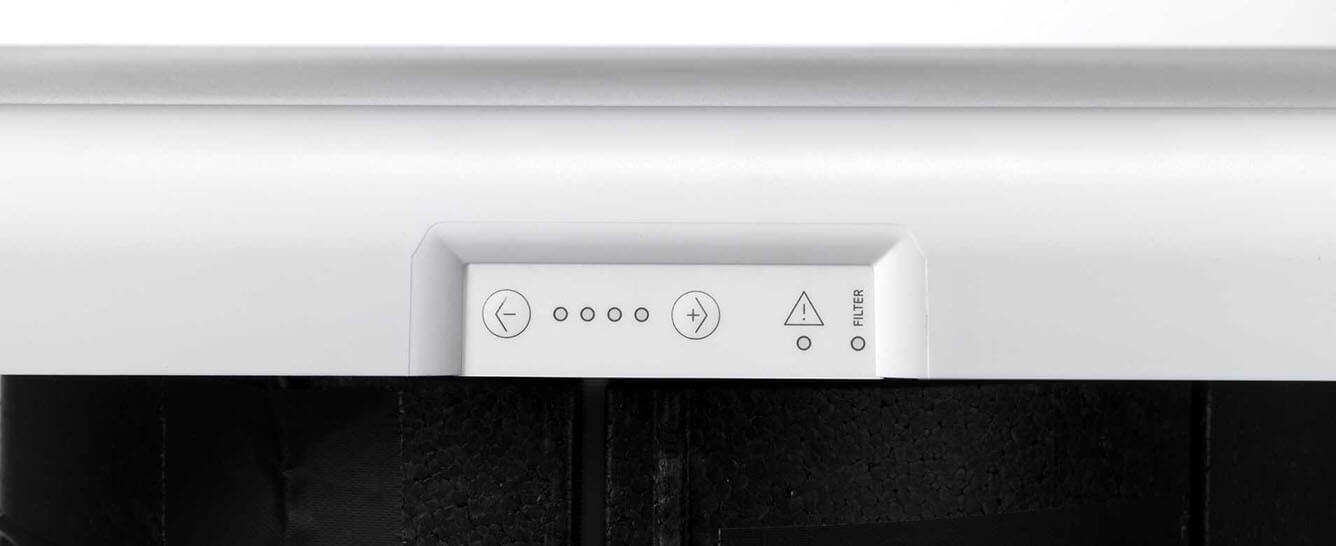

  • Recuperatore di calore Zehnder ComfoSpot 50, pannello di controllo

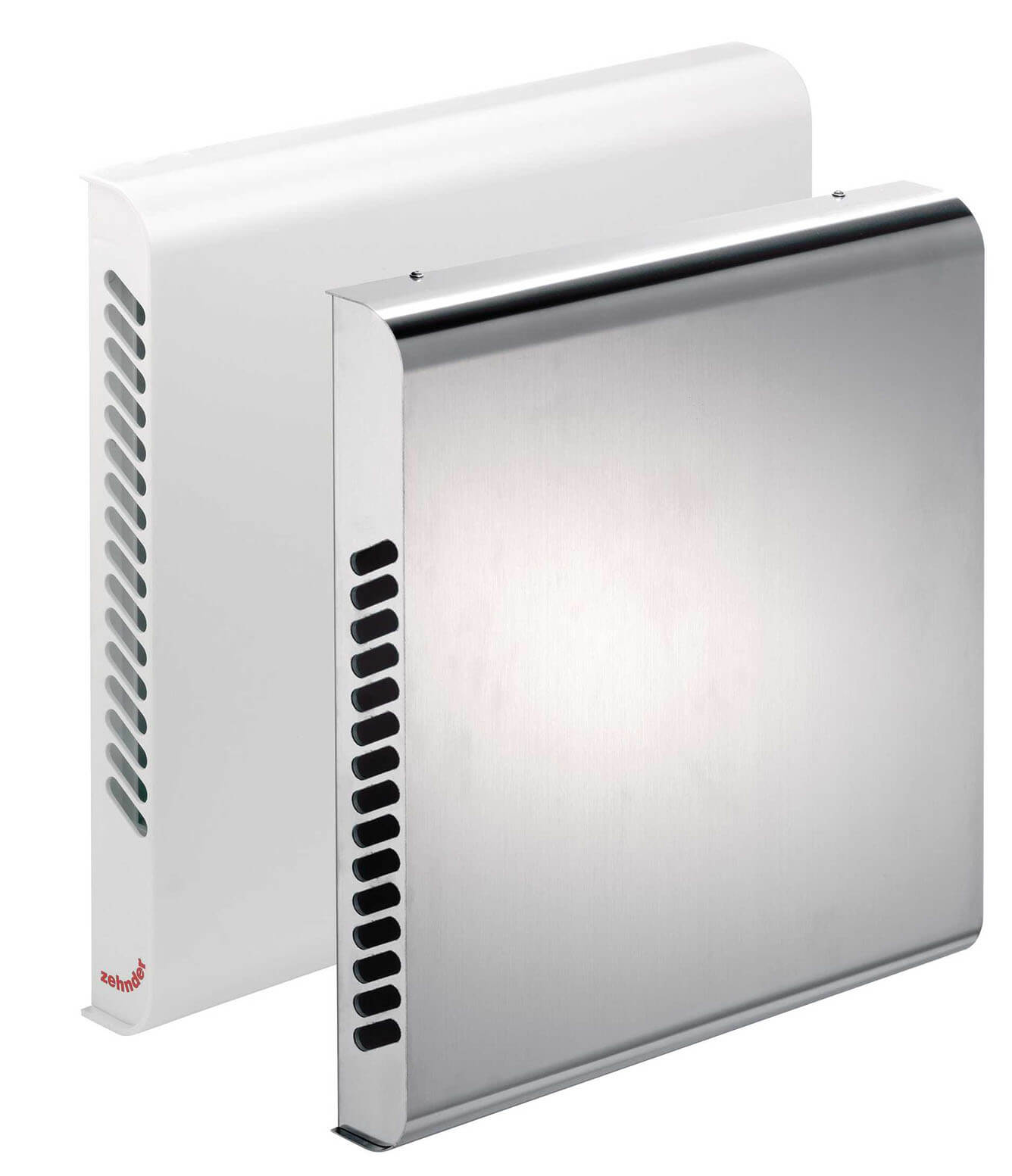

  • Recuperatore di calore Zehnder ComfoSpot 50, pannello frontale

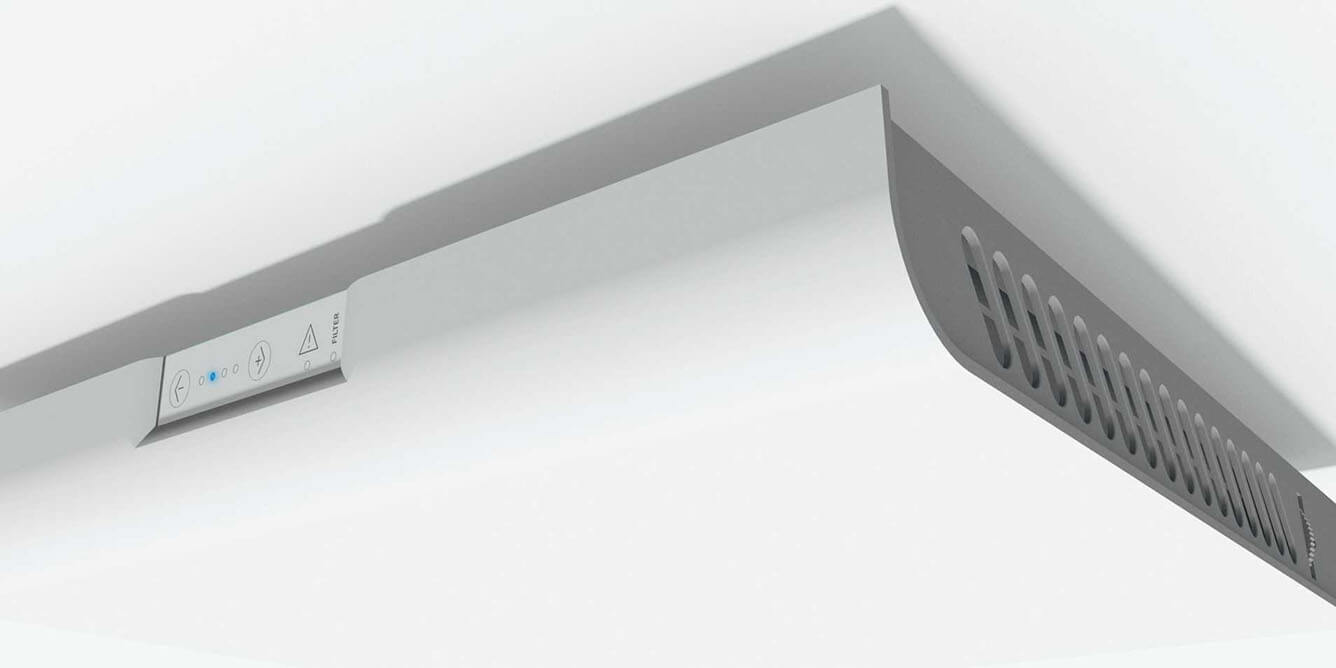

  • Recuperatore di calore Zehnder ComfoSpot 50, vista laterale

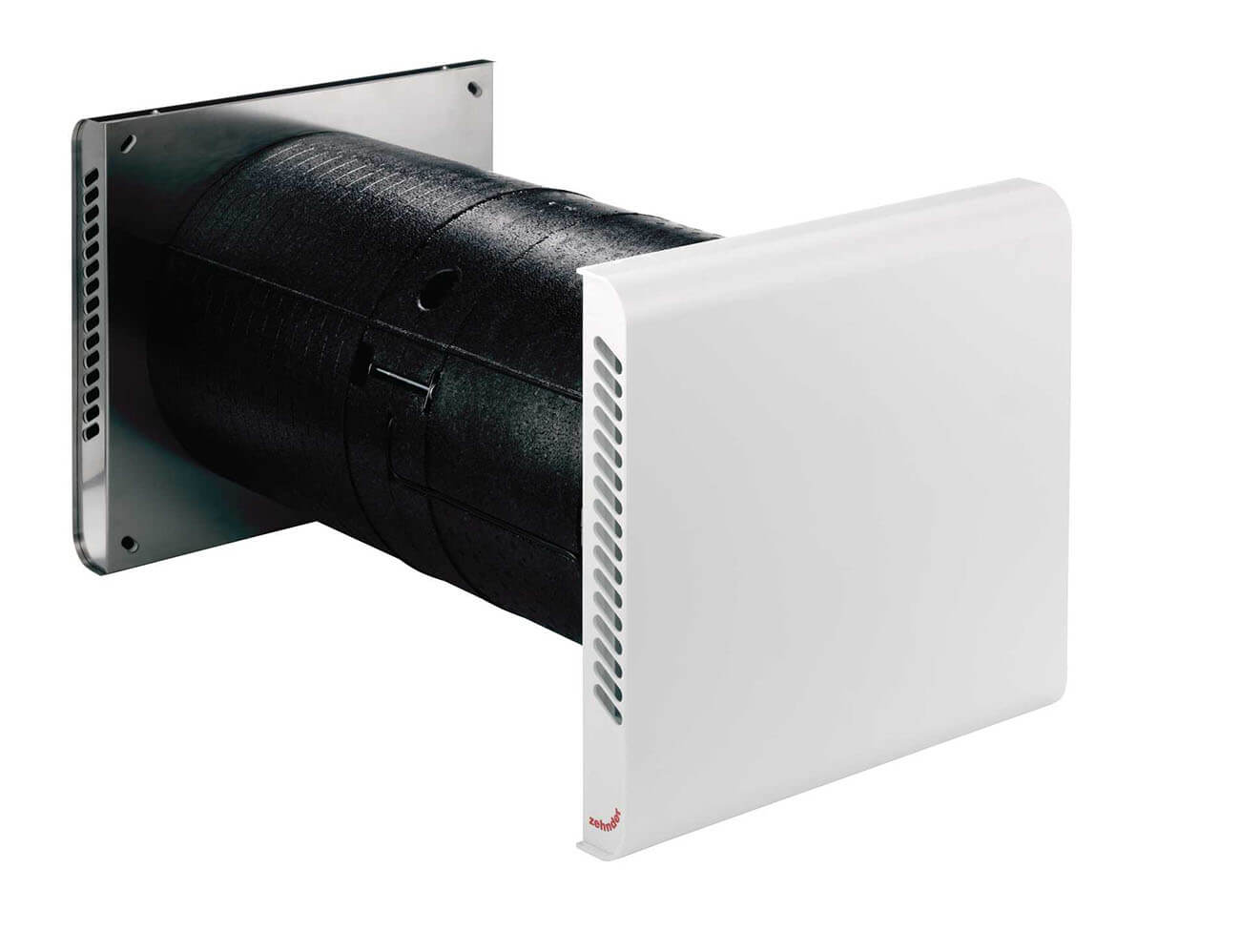

  • Recuperatore di calore Zehnder ComfoSpot 50, con pannello argento

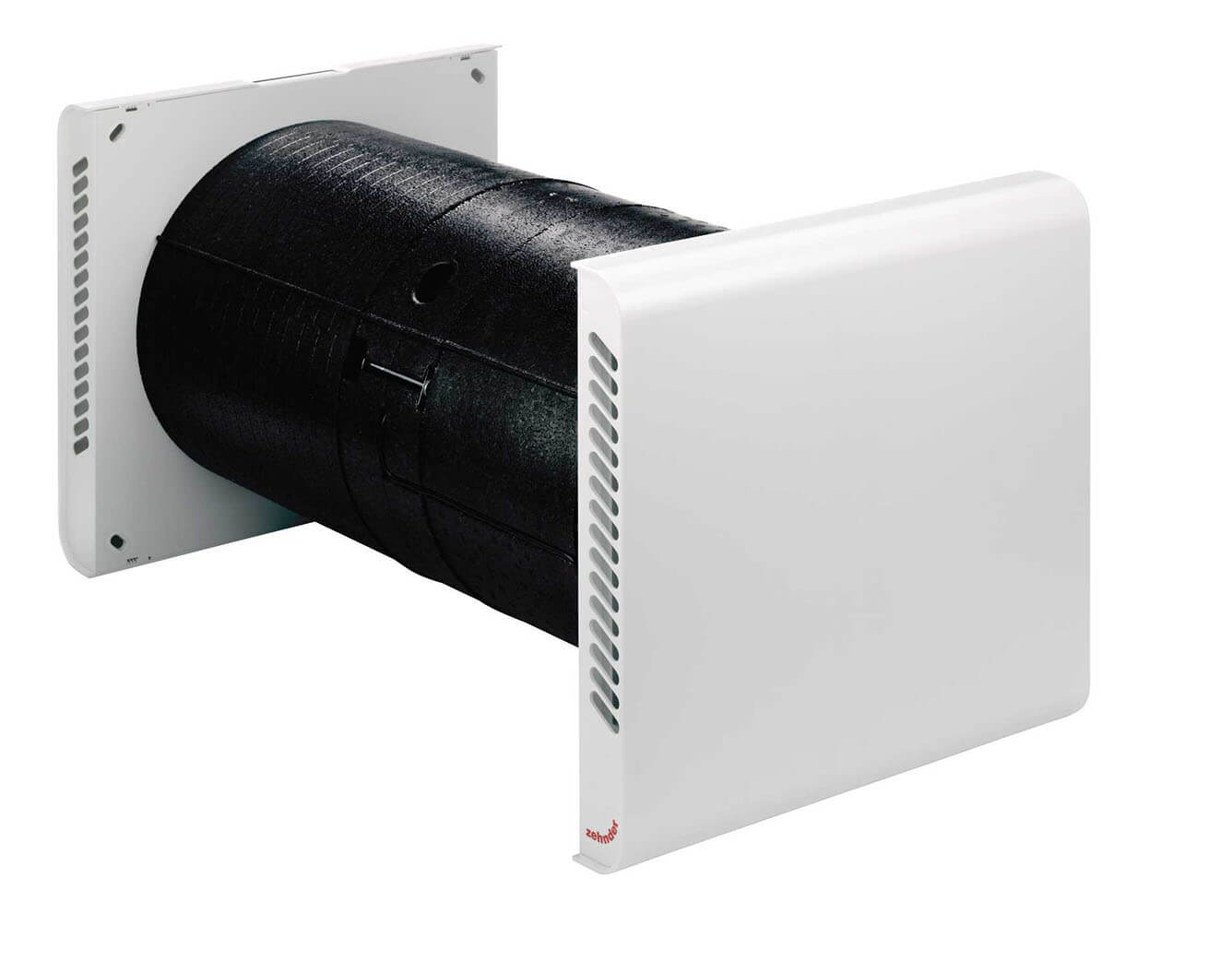

  • Recuperatore di calore Zehnder ComfoSpot 50, pannello bianco

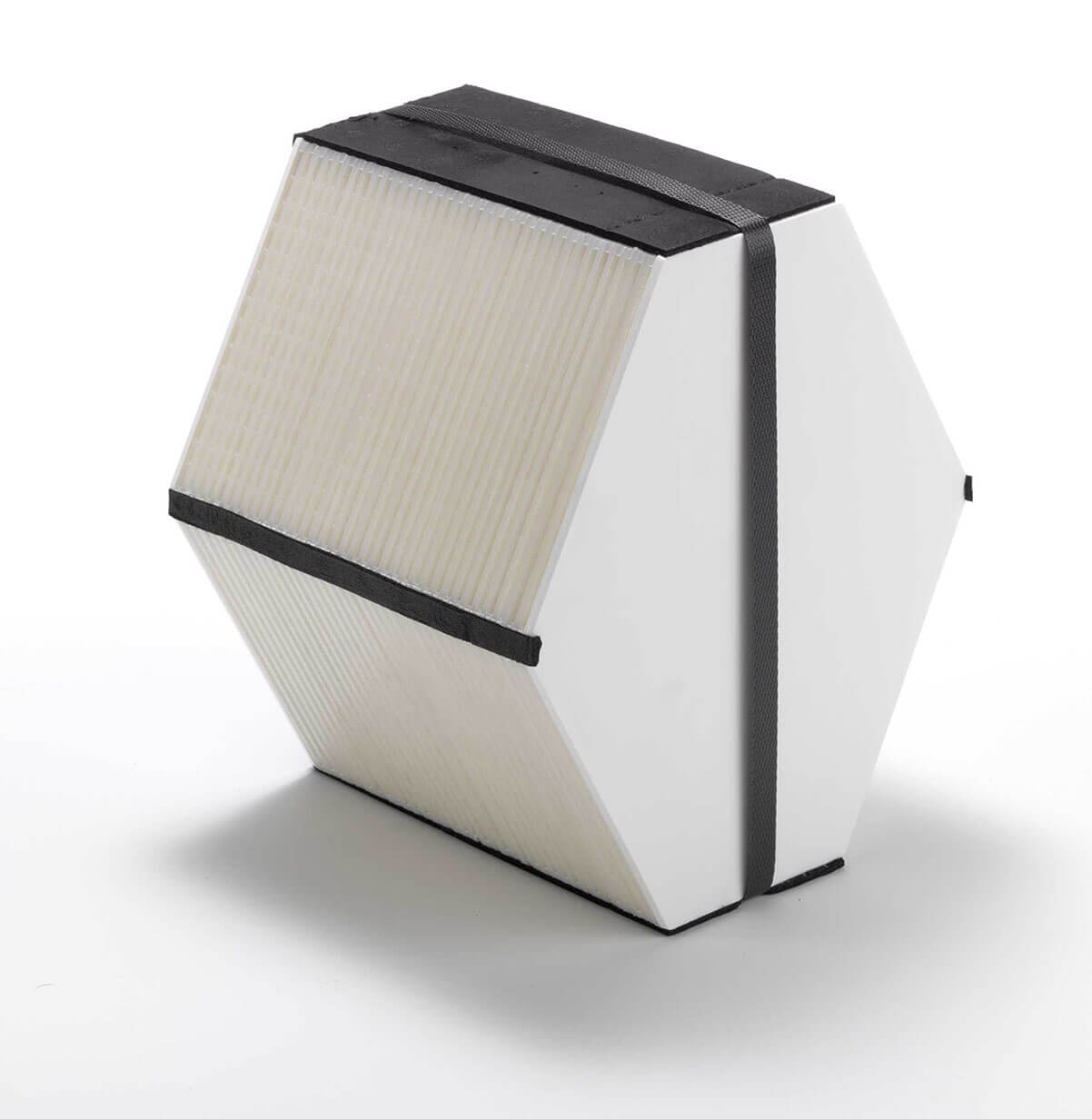

  • Recuperatore di calore Zehnder ComfoSpot 50, filtro
1 8

Zehnder

Recuperatore di calore a parete Zehnder ComfoSpot 50 (senza guscio di montaggio)

€1.441,72 EUR
€1.441,72 EUR
Imposte incluse. Spese di spedizione calcolate al check-out.

Key specifications

InstallationA parete
Airflowup to 50 m³/h
Heat exchangerEntalpico in controcorrente
Heat recoveryup to 85 %
Wall openingØ 340 mm
Energy classB
Description

Ventilation with a unique enthalpy heat exchanger or heat recovery unit, which ventilates the rooms in an energy-efficient and silent way, prevents stagnant air and the problems it causes - poor well-being, a environment for mold growth, etc. Designed for use in apartments, houses, small offices. The Enthalpy heat exchanger also recovers room humidity, which is essential in winter when room humidity is low. The unit has been "Passive House" certified.

Usage

The ideal solution for single rooms and small living areas, for renovation as well as new build: Zehnder ComfoSpot 50 decentralised ventilation unit impresses with its compact dimensions and high performance. This decentralised ventilation unit is easy and quick to install, no professional skills are required. The control panel is integrated in the unit's housing. However, the main advantage is the unique enthalpy heat exchanger which recovers most of the indoor humidity (which has a high thermal energy content) and transfers it to the incoming fresh outdoor air, thus also recovering heat. This keeps the indoor humidity at optimum levels in winter, prevents condensation and keeps the exterior clean.

The first decentralised, single-room installation to be certified by the "Passive House" Institute.

  • Purity: no condensation runs down the exterior facade of the building, which stays dry and clean.
  • Hygiene: Heat exchanger membranes trap unwanted odors. The heat exchanger is easy to maintain and can be washed with water.
  • Compact: Narrow profile, distinctive flat design.
  • Integral: The interior and exterior panels are paintable and can be matched to the wall colors.
  • Discreet: The whole unit is concealed in the wall, unobtrusive and can be installed virtually anywhere.
  • Comfortable: the control panel is integrated into the unit's housing and can be turned up or down as required.
  • Intuitive interface: Easy push-button control, 4 fan speeds, supply/exhaust control and automatic shut-off option.
  • Useful: The display visually indicates when filters need to be changed.
Technical specification
Air exchange rates
Recommended room area per single unit
up to 25 m2, up to 3 people
Intake at maximum power
55 m3/h
Exhaust at maximum power
55 m3/h
Intake at maximum power
15 m3/h
Exhaust at maximum power
15 m3/h
Heat recovery efficiency
up to 82 %
The air flows in and out simultaneously without mixing.
Dimensions and weight
Module length
350 to 600 mm
Module diameter without thermal insulation
315 mm
Diameter of the mounting hole
340 mm
Weight
6 kg
Other parameters
Power consumption
1 to 15 W/h
Noise level
25 dB at an air flow of 30 m3/h
Voltage
220-230 V
Benefits
Control
Stationary on the device
Power management modes
25 %, 50 %, 75 %, 100 %
Flow shut-off mechanism
Manual
European quality certificate CE.
2-year warranty.
