Kit coprifinestra per recuperatori di calore Ambientika

Description

Window reveal kit for Ambientika Heat recovery units.

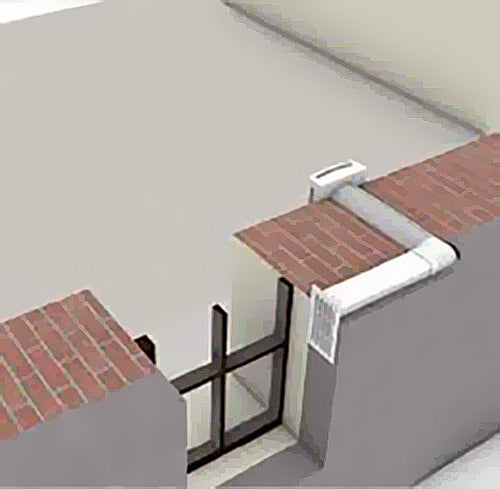

Assembly kit for installing the AMBIENTIKA heat recovery unit with external part coming out of a window frame and not from an external wall as usual.

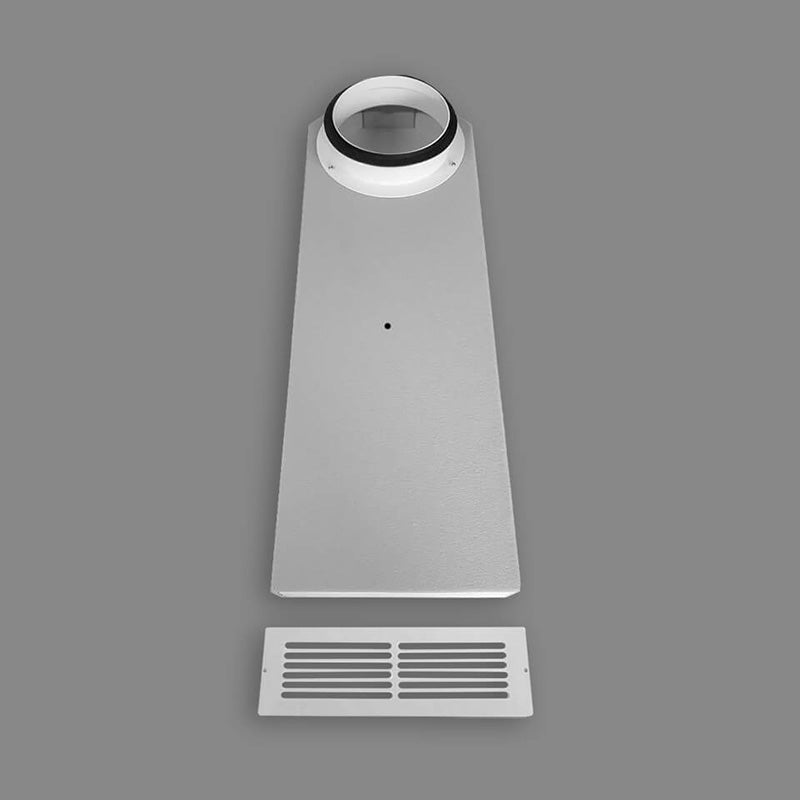

The package includes:

• 1 x white PVC exterior grille with dimensions of 75 x 250 mm;
• 1 x white PVC pipe with a 54 x 216 mm right-angled cross-section, externally insulated with 3-mm cladding, increasing the overall dimensions to 60 x 222 mm. At the opposite end, there is a ring clamp with a gasket designed to connect to the existing pipe unit with a 160 mm external diameter.
• 1 x polystyrene closure measuring 54 x 216 mm, serving as a protective cover for the right-angled pipe. This cover should be removed once the installation of the AMBIENTIKA kit/unit is complete and before placing the outer grille.

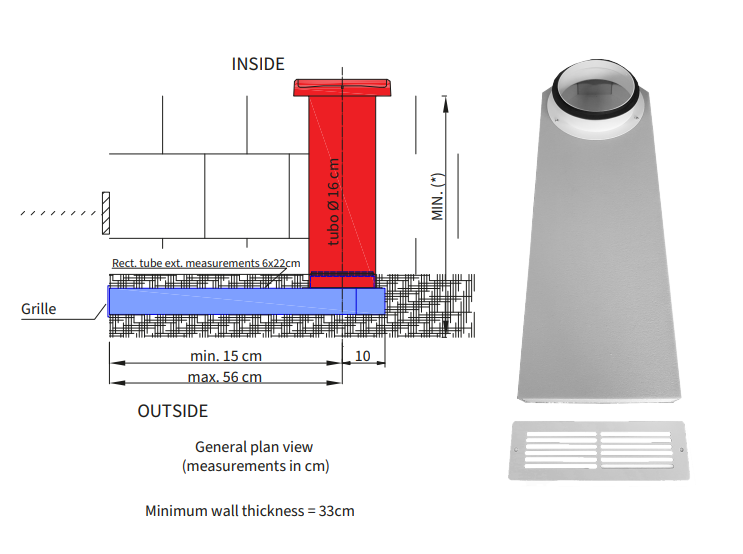

The pipe measuring 60 x 222 mm, which can be adjusted to the appropriate length on-site if needed, should be installed with a 3° slope towards the grille. This angle ensures that any potential water accumulation within the pipe is effectively prevented.
