Sensore a pulsante InControl Meltem M-WRG-T

Description

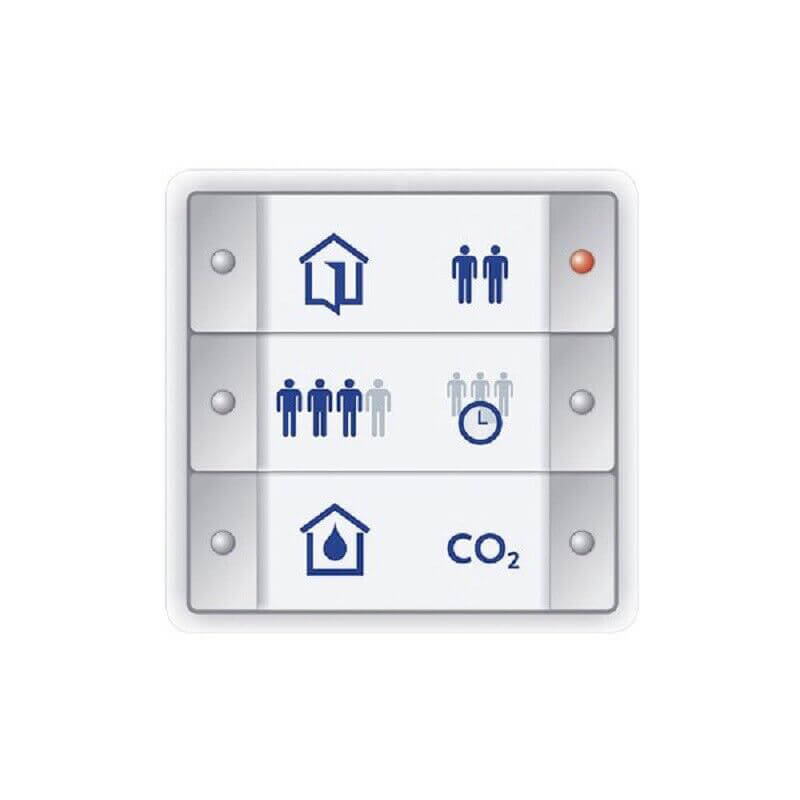

Pushbutton sensor InControl with LED display for Meltem M-WRG-II and M-WRG

• Connect and control up to 5 devices;
• 6 ventilation modes.

Ventilation programs M-WRG-II devices:

1. Ventilation when away: 10 (20) m3/h
2. Ventilation when people are present: 30 (40) m3/h
3. Increased ventilation: 50 (60) m3/h
4. Intensive ventilation: 100 m3/h/15 min
5. Supply air mode:
   50:0 (70: 40/20(8am-8pm/8pm-8am)m3/h
6. Exhaust air mode:
   50:0 (70: 40/20(8 a.m. to 8 p.m./8 p.m. to 8 a.m.)m3/h

Humidity control*
CO2 control*

Ventilation programs M-WRG devices:

1. Ventilation when away: 15 (20)**m3/ h
2. Ventilation when people are present: 30 (40)**m3/h
3. Increased ventilation: 60 m3/h
4. Intensive ventilation: 100 m3/h/15 min
5. Supply air mode:
   50:15 (70:40/20(8 a.m.-8 p.m./8 p.m.-8 clock)**m3/h
6. Exhaust air mode:
   50:15 (70:40/20(8-8 p.m./8-8 p.m.)**m3/h

Humidity control*
CO2 control*

*only device types with corresponding
sensors
** M-WRG devices from year 2020

Using a 6-fold pushbutton sensor, you can control 2 to 5 ventilation devices individually for room-by-room operation. It's important to note that all devices must be of the same type!

When controlling 2 to 5 ventilation devices with a 6-fold pushbutton sensor, feedback only comes from the first device!

Technical specification

• Colour: White / Stainless steel
