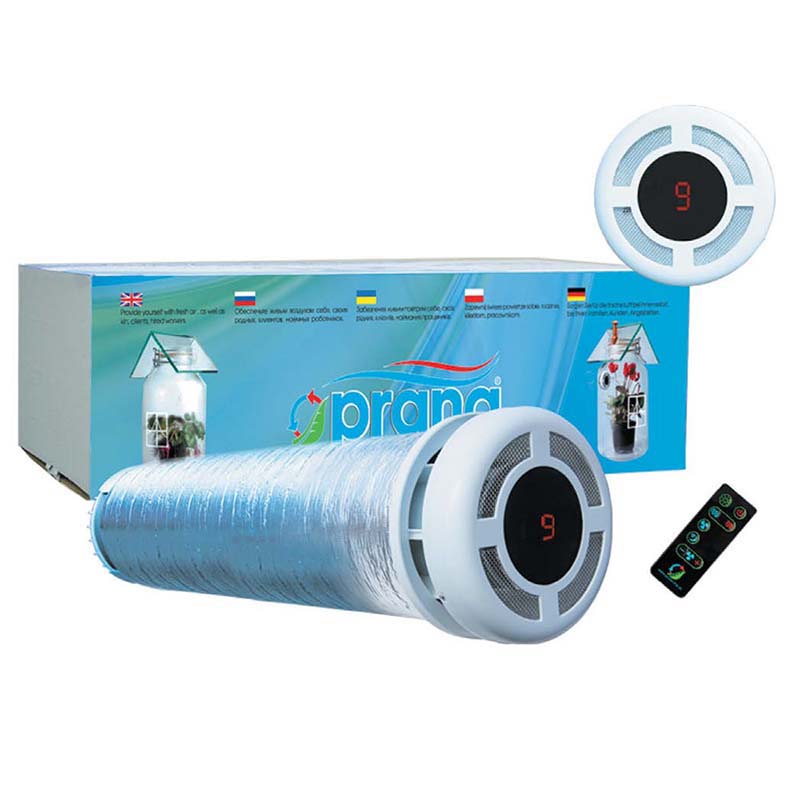

• Recuperatore di calore Prana-200C per locali produttivi e commerciali

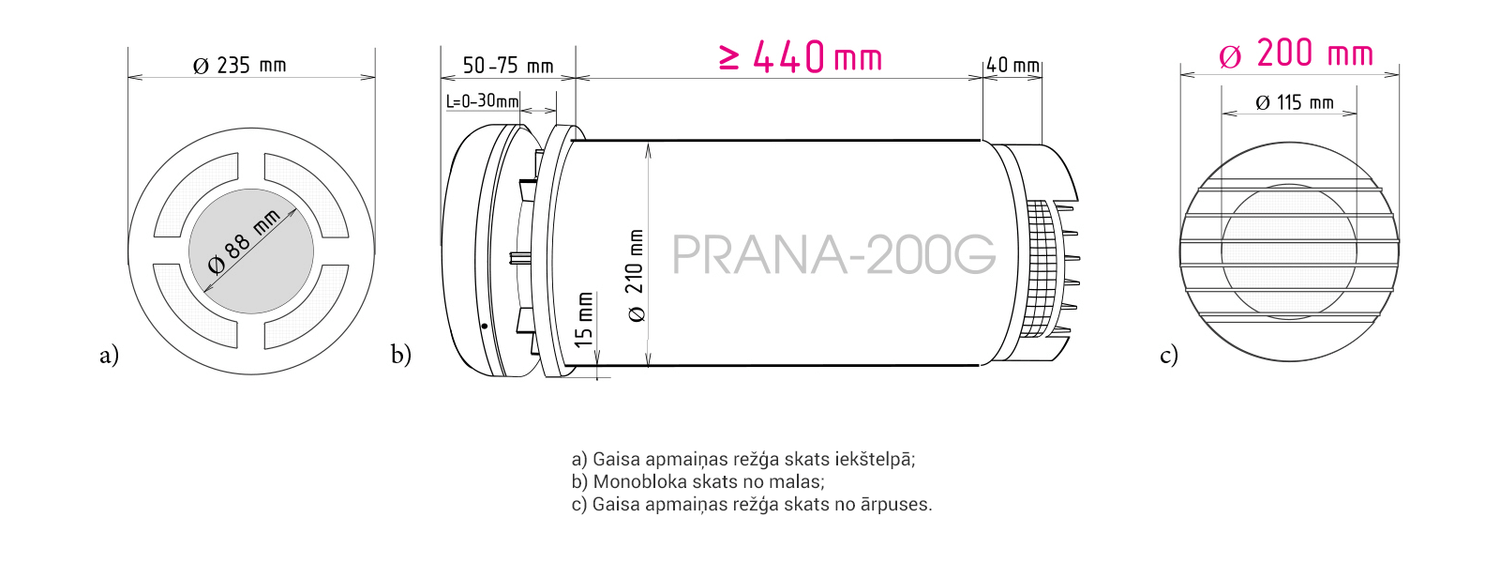

  • Dimensioni del recuperatore di calore Prana-200C

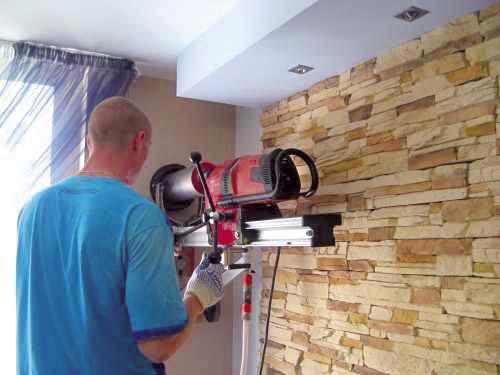

  • Recuperatore di calore Prana-200C, installazione con trapano

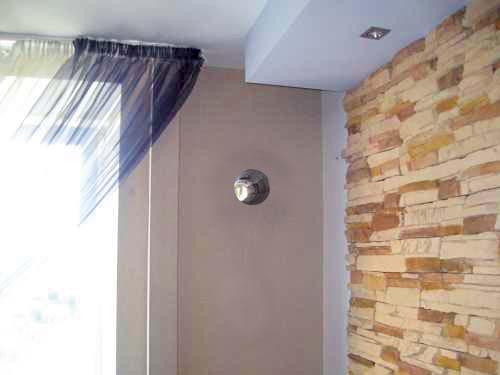

  • Recuperatore di calore Prana-200C, foro di montaggio

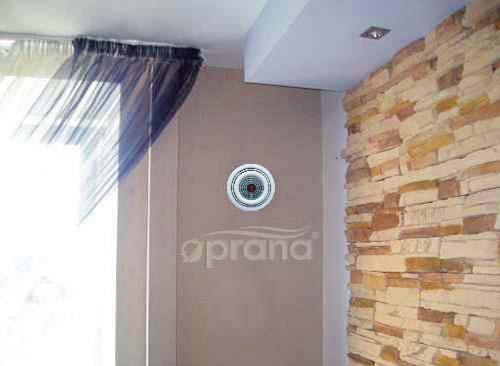

  • Recuperatore di calore Prana-200C installato in un appartamento

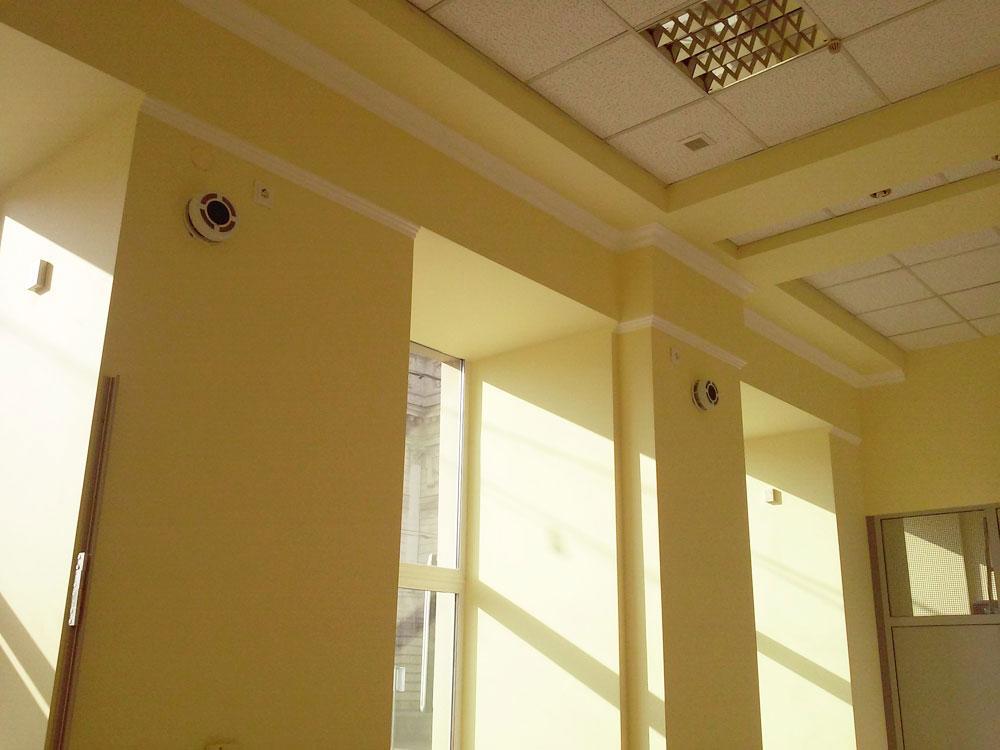

  • Recuperatore di calore Prana-200C all'interno di una banca

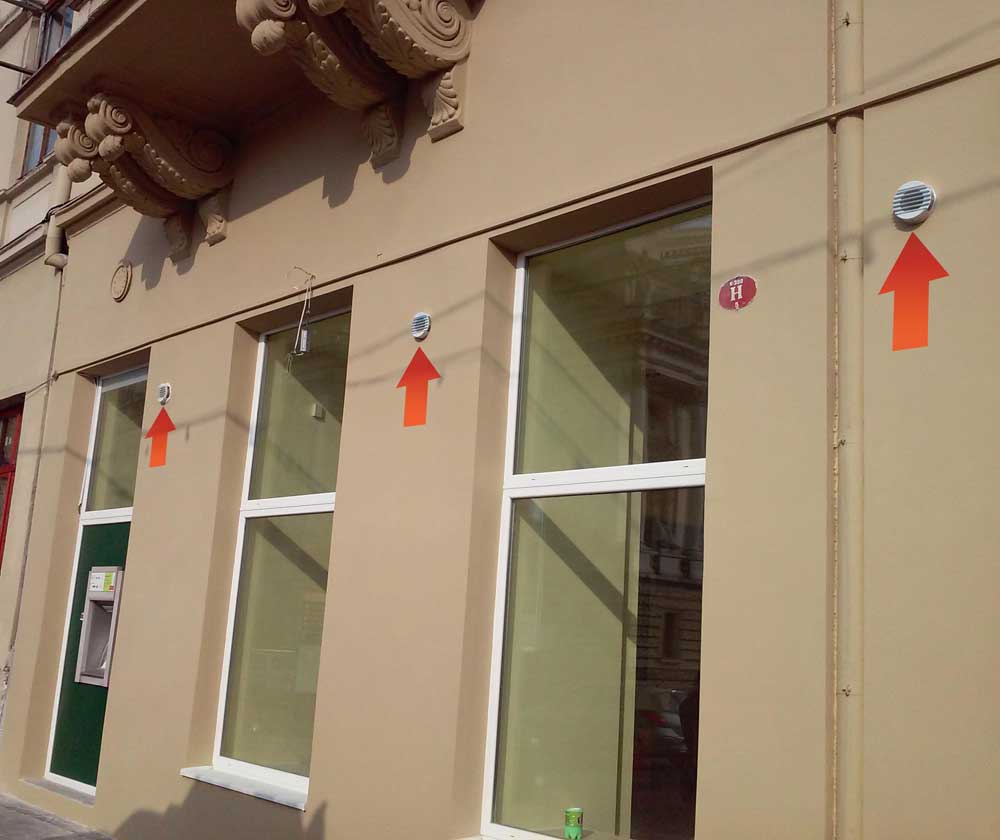

  • Recuperatore di calore Prana-200C, esterno di una banca

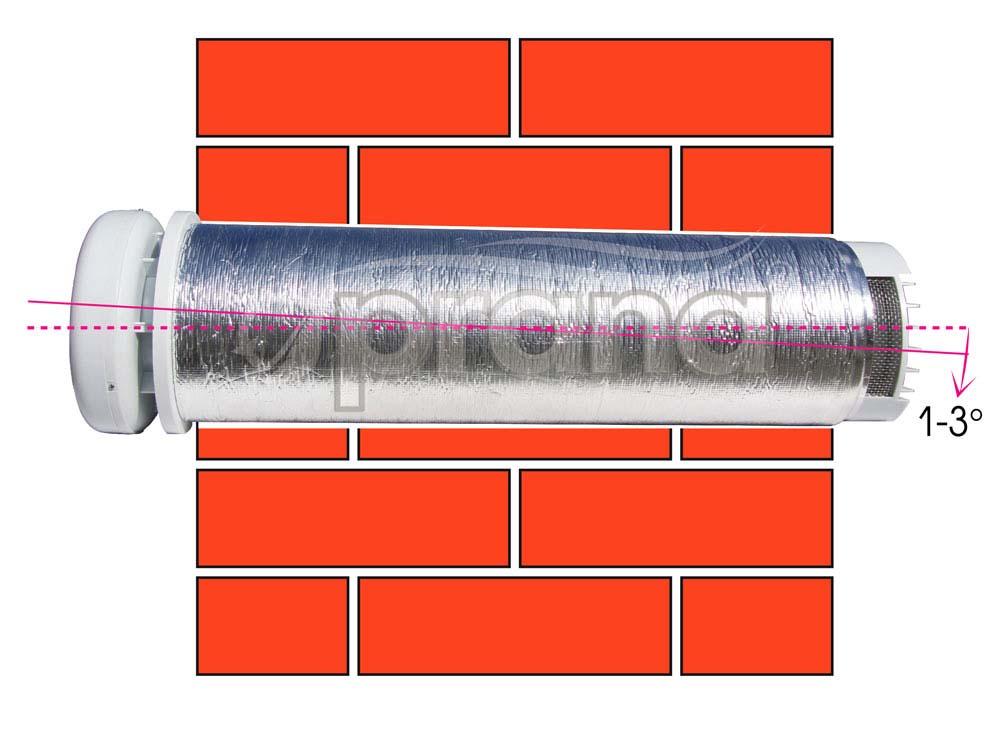

  • Recuperatore di calore Prana-200C, installazione con inclinazione di 1-3°

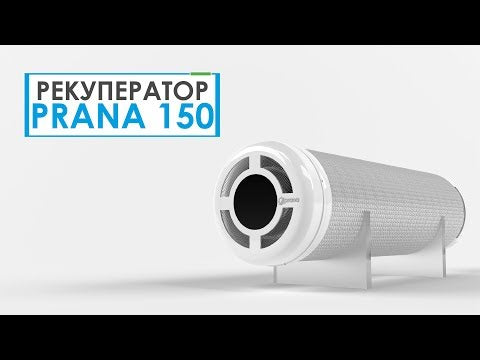

  • Rekuperators Prana-150
1 9

Prana

Recuperatore di calore a parete Prana-200C

€750,20 EUR
€750,20 EUR
Imposte incluse. Spese di spedizione calcolate al check-out.

Key specifications

InstallationA parete
Airflowup to 140 m³/h
Heat exchangerIn rame
Heat recoveryup to 92 %
ControlTelecomando, App / WiFi
SensorsTemperatura
Wall openingØ 220 mm
Energy classB
Description

This PRANA heat recovery unit model "Prana-200C" is designed for use in industrial and commercial buildings, catering, entertainment, education, rehabilitation centers, saunas, office buildings, call centers, hotels, etc. This model can also be used for household purposes.

This device helps to improve the indoor air exchange, thus reducing airlessness and humidity, which are the cause of mold.

Technical specifications
Air exchange rates
Recommended room area per system
up to 60 m2
Intake
6-140 m3/h
Exhaust
6-140 m3/h
Night mode air exchange
40 m3/h
Heat recovery efficiency
up to 92 %
The air flows in and out simultaneously without mixing.
Dimensions and weight
Length of working module
≥ 490 mm
Diameter
200 mm
Mounting hole diameter
min. 220 mm
Other indicators
Power consumption
3,2 W/h to 91 W/h, depending on operating mode (energy class B in average climate)
Advantages
"Mini heating" function
Insulated housing
The new design of the inner and outer ventilation grilles gives the ventilation system extra protection against rain, leaves and poplar fluff, and allows the airflow to be blocked completely if necessary.
Remote control or dimmer ( rheostat) to control the device
A copper heat exchanger in the working module provides heat exchange (heat recovery)
Thanks to the natural antiseptic properties of copper, the copper heat exchanger provides excellent heat recovery, natural and clean air without germs and bacteria
European quality certificate CE
2-year warranty
