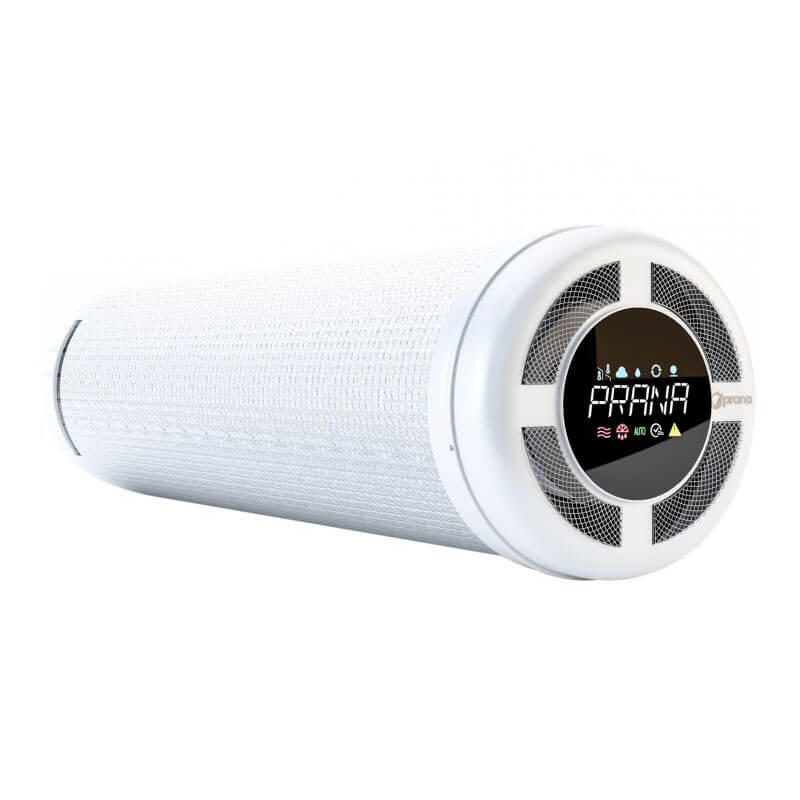

  • Recuperatore di calore Prana 150 Premium Plus Mini

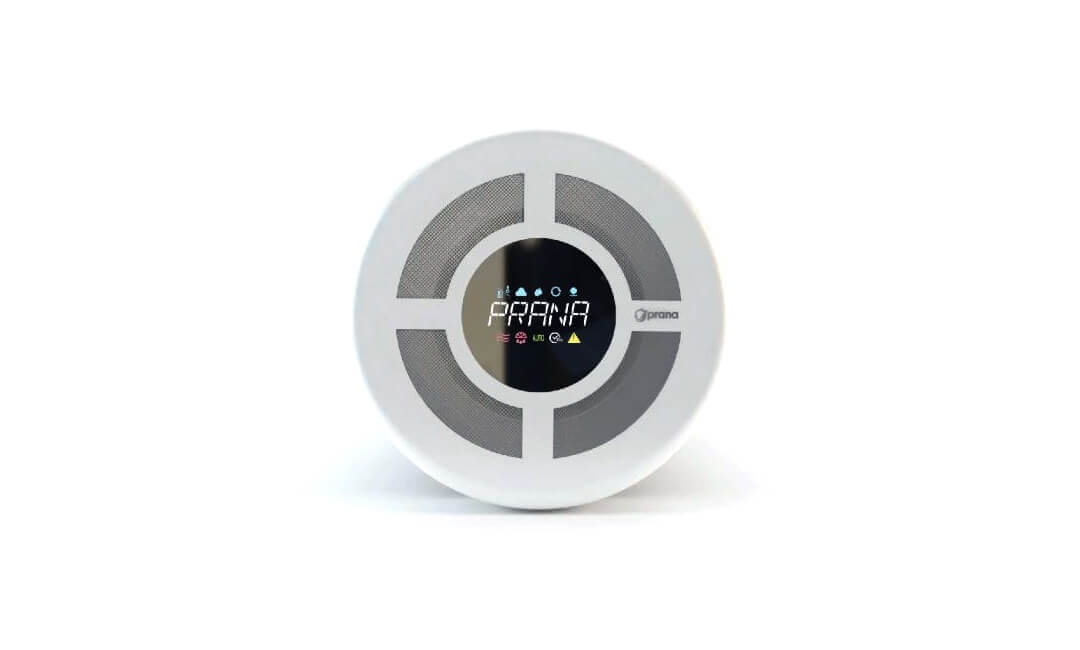

  • Recuperatore di calore Prana 150 Premium Plus Mini, pannello frontale

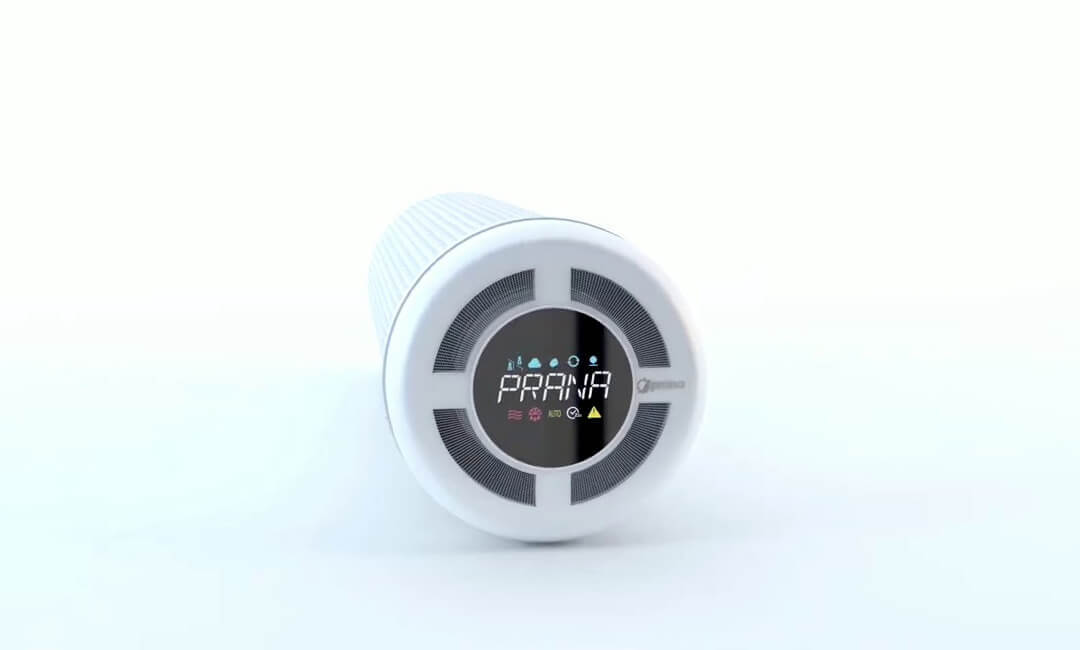

  • Recuperatore di calore Prana 150 Premium Plus Mini, vista frontale

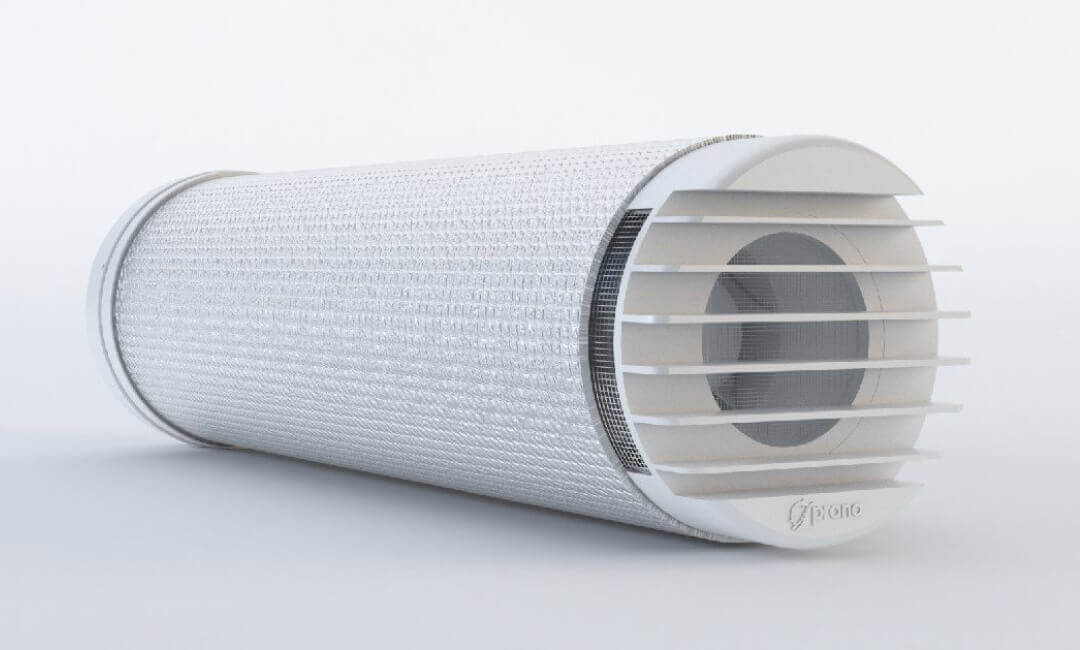

  • Recuperatore di calore Prana 150 Premium Plus Mini, diffusore posteriore

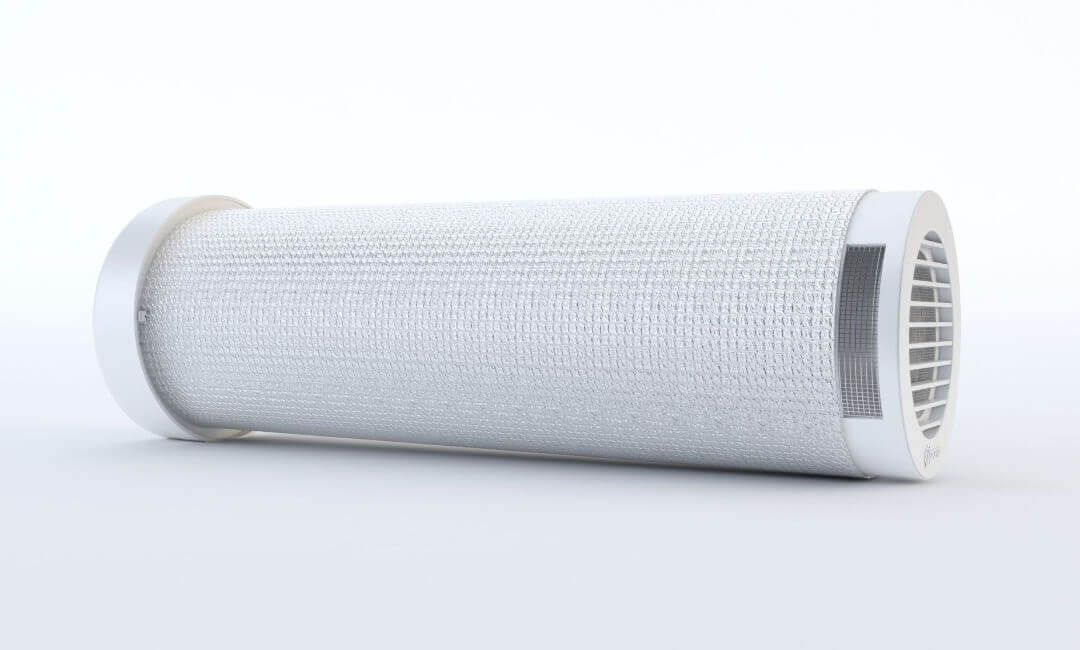

  • Recuperatore di calore Prana 150 Premium Plus Mini, vista laterale

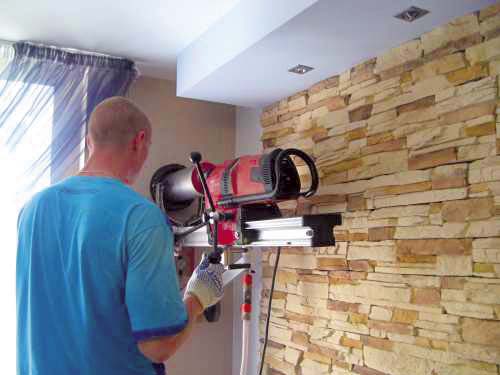

  • Recuperatore di calore Prana 150 Premium Plus Mini, installazione

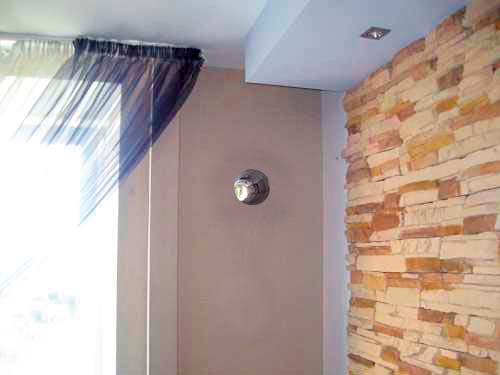

  • Recuperatore di calore Prana 150 Premium Plus Mini, foro di montaggio

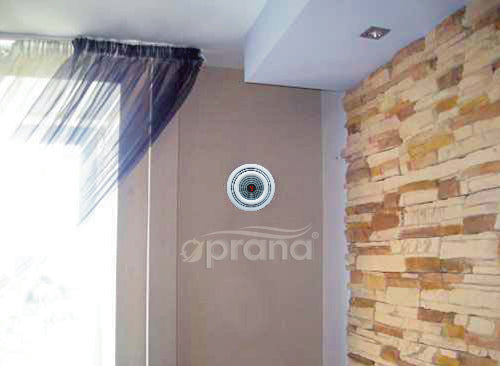

  • Recuperatore di calore Prana 150 Premium Plus Mini, dispositivo di installazione

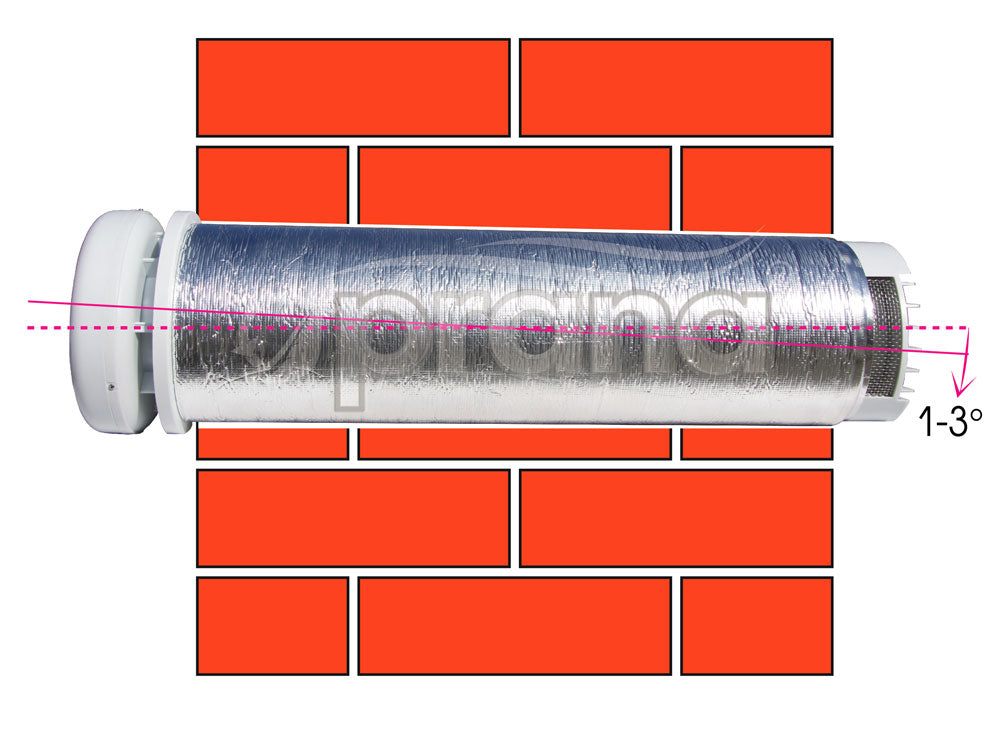

  • Recuperatore di calore Prana 150 Premium Plus Mini, angolo di installazione
1 di 9

Prana

Recuperatore di calore a parete Prana-150 PREMIUM PLUS Mini

Prezzo di listino €677,60 EUR
Prezzo di listino Prezzo di vendita €677,60 EUR
Imposte incluse. Spese di spedizione calcolate al check-out.

Key specifications

InstallationA parete
Airflowup to 70 m³/h
Heat exchangerIn rame
Heat recoveryup to 85 %
ControlTelecomando, App / WiFi, Automatico (tramite sensori)
SensorsCO2, COV (VOC), Umidità, Temperatura
Wall openingØ 162 mm
Description

Usage

The Heat Recovery Unit Prana-150 PREMIUM PLUS Mini is an ideal choice for those looking to install a heat recovery system in their modular or timber frame home. At only 35cm in length, it is designed to fit into limited spaces while offering maximum efficiency. Its patented copper heat exchanger helps deliver up to 85% heat recovery rate, while its AUTO function ensures optimal humidity levels to maintain interior comfort and prevent mold. Plus, the Prana RC mobile app and remote control provide complete intelligent control of the ventilation system. Enjoy ultra-quiet ventilation and energy-efficient, sensor-monitored air quality.

This PRANA heat recovery unit model "Prana-150 PREMIUM PLUS Mini" is designed for use in households (apartments, private houses, small office spaces and gyms, pre-school educational institutions.

The main feature of this appliance is that it is only 35cm, allowing it to fit into a narrower wall than the conventional version.

The device helps to improve the air exchange in rooms, thus reducing airlessness and humidity, which are the cause of mold.

Prana-150 PREMIUM PLUS Mini heat recovery unit advantages

  • Unique, patented ventilation technology based on a copper heat exchanger;
  • Heat recovery rate (up to 85%);
  • Possibility to control the incoming and outgoing airflow separately;
  • Intelligent control (Prana RC mobile app as well as remote control);
  • Autonomous control of the ventilation system - AUTO function;
  • Ensures humidity levels are within normal limits to prevent mold and its occurrence and improve indoor comfort;
  • Ultra-quiet ventilation;
  • Air quality sensors: CO2 equivalent, VOC, humidity, temperature and pressure;
  • Energy efficient ventilation for any type of premises: residential, administrative, educational, medical, commercial real estate;
  • Length of device only 35cm;
  • Suitable for modular and timber frame houses.
Technical specification
Air exchange rates
Recommended room space per system
up to 50 m2
Intake
5-70 m3 / h
Exhaust
5-70 m3 / h
Heat recovery efficiency
up to 85%
Night mode air exchange
Yes
Air intake and exhaust occur simultaneously without mixing airflows
Dimensions and Weight
Length of the module
350 mm
Diameter
150 mm
Mounting hole diameter
162 mm
Other parameters
Power Consumption
4 W / h to 17 W / h, depending on operating mode
Noise Level
14-52 dB
Benefits
Management System
Remote control and mobile application control
Mini Heating function
Yes
Insulation of the housing
Yes
The new design of the inner and outer ventilation grilles gives the ventilation system extra protection against rain, leaves and poplar fluff, and allows the airflow to be blocked completely if necessary.
Thanks to the natural antiseptic properties of copper, the copper heat exchanger provides excellent heat recovery, natural and clean air, free from germs and bacteria.
European Quality Certificate CE
2-year warranty
